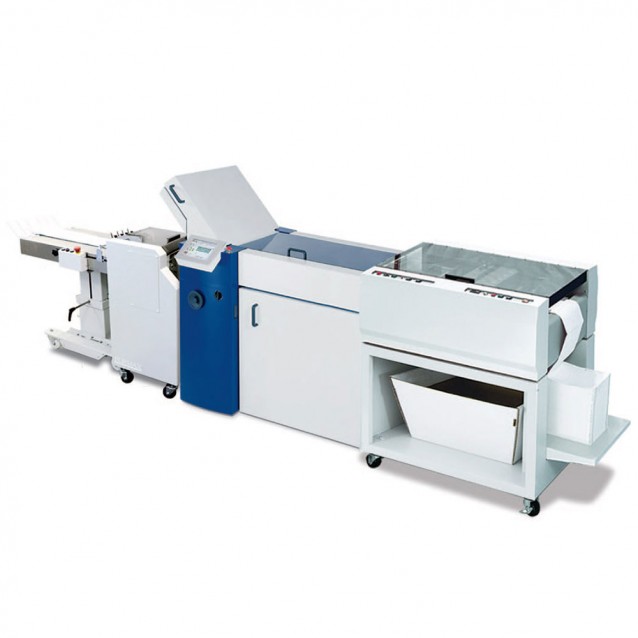

AutoSeal® FD 2380 High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster

AutoSeal® FD 2380 High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster
AutoSeal® FD 2380 High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster
AutoSeal® FD 2380 High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster
AutoSeal® FD 2380 High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster
AutoSeal® FD 2380 High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster
Starting From $115,995.00
  • Stock: In Stock
  • Cashback: $2,319.90
  • Model: FD2380
  • Weight: 1,200.00lb
  • SKU: FD2380

Available Options

Share This:

The AutoSeal® 2300 Series High-End Pressure Sealers are designed to handle the highest volume jobs with ease and dependability, with speeds of up to 43,000 forms per hour. User-friendly features include the graphics-based color touchscreen control panel, and the ability to program up to 200 custom jobs. Fully automated settings include the feeder, alignment rails, fold plate stops, deflectors and fold rollers, and delivery rollers.

The FD 2380 works in-line with the Formax FD 676 Maxi Burster for processing continuous forms. The Formax V-Stack36 Vertical Stacker is an available option which stacks up to 22” of processed forms, making them easier to unload for further handling.

The FD 2300 produces fast and accurate folds to deliver a secure and time-effective finished product ready for the mail. The 2300 Series clearly sets the new standard for high volume processing.

Featured Highlights

  • High-Speed Processing: Large jobs are processed quickly at speeds of up to 45,000 pieces per hour
  • Various Form Sizes: Handles a variety of documents up to 11.5” wide and 14” long
  • Versatile: Processes forms including checks, invoices, school reports, tax forms, appointment notices, PIN notices and a variety of direct marketing pieces
  • Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use
  • Fully Automated Settings: Feeder, alignment rails, fold plate stops, deflectors, fold rollers, delivery rollers
  • Pre-Programmed Folds: 20 standard folds are pre-set for quick and easy operation
  • Programmable Jobs: Up to 200 jobs can be easily programmed and stored in memory
  • Counters: Resettable and batch counters
  • Fold Types: Z, uneven Z, C, Half and custom folds
  • Conveyor with Photo Eye: Adjustable 28”-42” conveyor for neat, sequential stacking
  • Interlocks: For fault detection and operator safety
  • Combination Rollers: Steel & polyurethane rollers for durability
  • Insulated Fold Plates: Rugged fold plates are insulated for quieter operation

Specifications

  • Hopper Capacity: Continuous Forms
  • Variable Speed: Up to 43,000 sheets per hour – based on 11” Z-Fold (279mm)
  • Paper Size: Up to 11.5” W x 25” L (292 W x 635 L mm)
  • Usage: Production
  • Power: 208V, three phase, 20 Amp** (Special 3 Phase Power Required)
    NEMA L14-20P plug included, NEMA L14-20R receptacle required
  • Dimensions: 167” L x 30” W x 56” H (425 L x 76 W x 142 H cm)
  • Weight: Approx. 1,200 lbs (544 kg)
  • Delivery Requirements: Customer-supplied fork lift is required for installation and setup

Available Options

  • Center Slitter & Two-Up Form Kit
  • V-STACK36 Vertical Stacker: Aligns with the outfeed and vertically stacks up to 22” of folded documents, making them easier to unload for further processing

* Capacity of up to 3,500 non-windowed forms. Forms with a traditional patch window are better suited for the FD 2300 and FD 2300-EX.
** Three phase power is required.
