MBM FC 10 Twin Tower Automatic 20-Bin Friction Collating System
MBM FC 10 Twin Tower Automatic 20-Bin Friction Collating System collates a variety of paper stocks and weights at speeds up to 3,600 sets per hour*. It includes a 275 sheet bin capacity*; high capacity stacker; collator units can be used in tandem or separately while connected; touch-button control panel with LED 4 digit counter simplifies set-up and operation; programming modes include preset batch, insertion, and an alternate bin mode for continuous production.

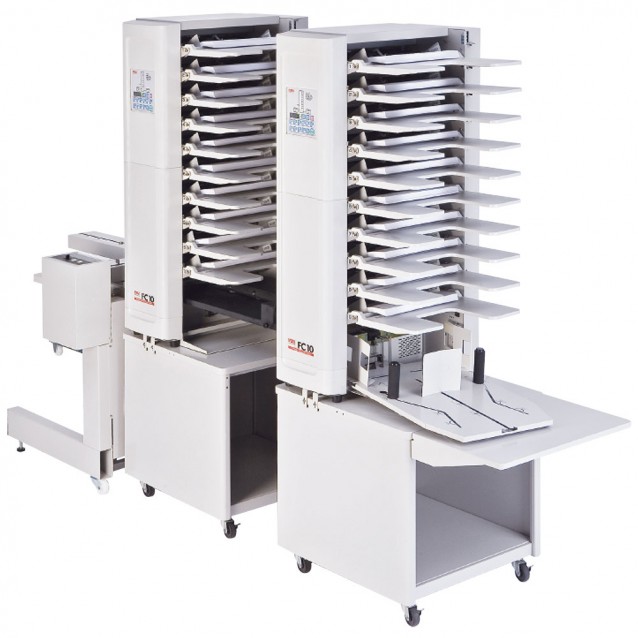

It also features an adjustable stacking table for straight or criss-cross stacking; self-centering feed guides eliminate the need to reposition on-line bookletmakers for different size stock; adjustable feed and separator pressures on each bin; “bin empty” sensor; extra large, detachable feed trays. Shown with optional bases with casters and high capacity stacker, necessary when using system off-line.
Dimensions (D x W x H): 27 5⁄8 x 86 1⁄2 x 41 1⁄4 inches (90 1⁄2 W, 63 H with bases)
|Number of bins||20|
|Bin capacity||275 sheets*|
|Paper size||3 3/4" x 5 7/8" to 12 7/8" x 18 1/2"|
|Paper Weight||20 to 100 lbs|
|Power supply||110 V, 60 H|
*may vary due to variations in paper and power supply
Programming and operation of the MBM FC 10 Twin Tower Automatic 20-bin Friction Collating System is controlled from an easy to use touch-button control panel. The optional high capacity stacker can stack up to 3,200 collated sheets (straight or offset).
