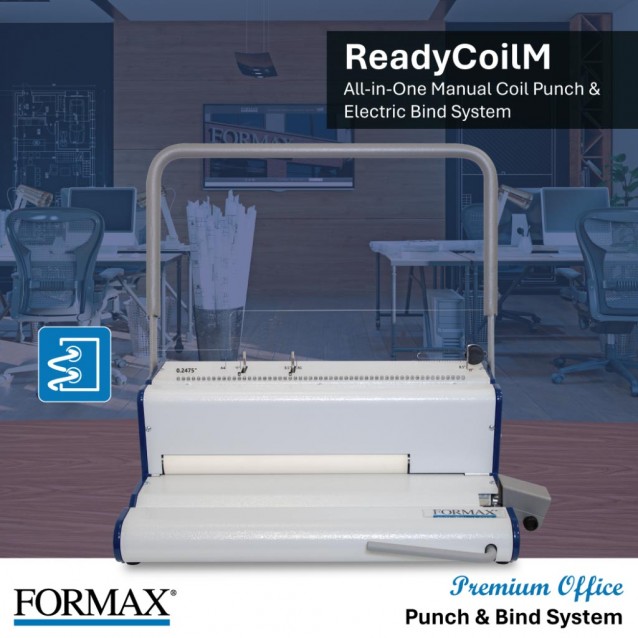

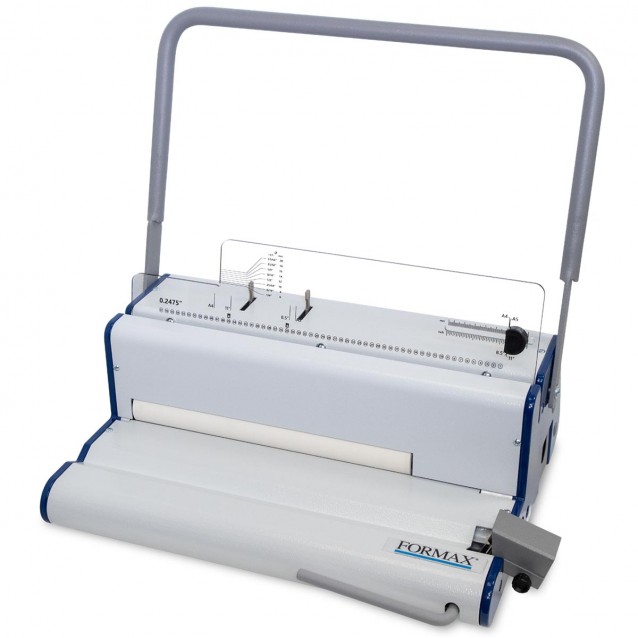

Formax ReadyCoilM Combination Coil Punch and Binding Machine

Premium Office Manual Punch and Electric Coil Inserter

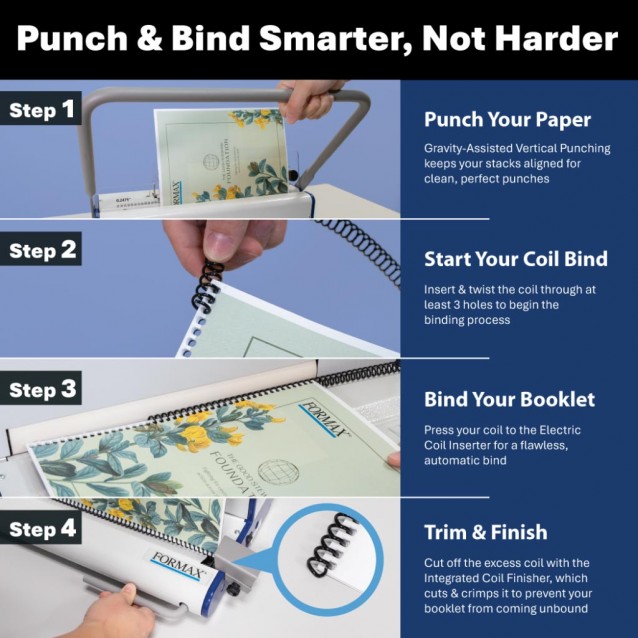

The ReadyCoilM Combination Punch and Coil Inserter combines manual and electric operation for easy, efficient use in offices with low to medium volume. The precision vertical punching system utilizes gravity to keep every sheet in place, for consistent hole placement even on thicker document sets. Disengageable punch pins offer flexibility for a variety of paper sizes, and are specially hardened for longevity. The electric coil inserter automatically threads PVC spiral coil easily and effectively, while the integrated coil cutting and crimping tool gives projects a professional finish with a 45-degree coil crimp. Compact design and thoughtful features make the ReadyCoilM an economical solution for booklet finishing.

Standard Features

• Manual lever-activated punching
• Precision vertical punching system
• Electric roller for quick coil insertion

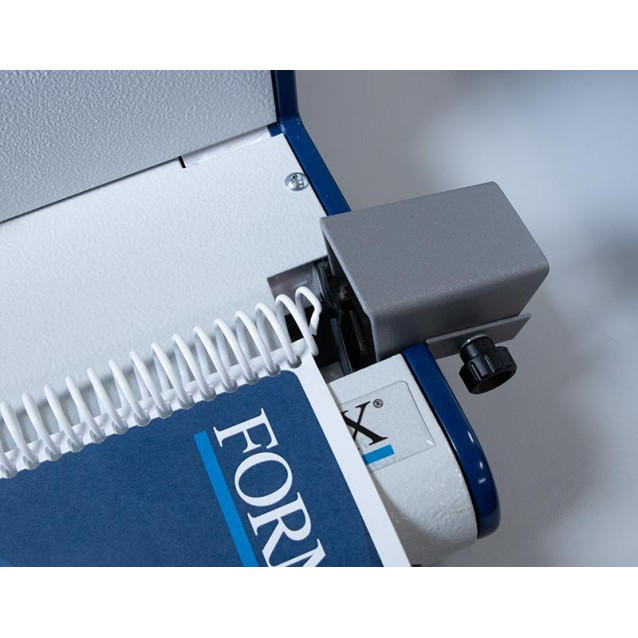

• Integrated manual crimp & cutting tool
• Binds up to 160 sheets
• Specially hardened punch pins

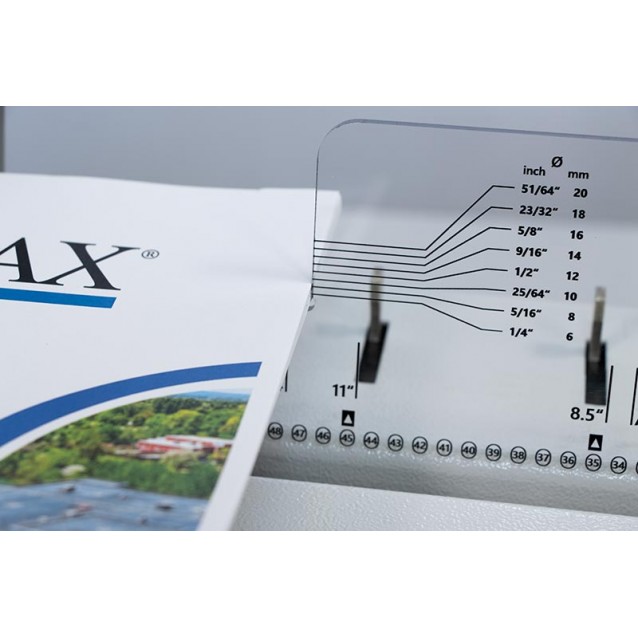

• Measuring guides for document & coil
• Heavy duty construction
• Quick size adjustment for flexibility
• Staggered punching pins
• Easy-empty sliding waste tray

Specifications

• Punching Speed: Up to 8,000 sheets/hr
• Punching Width: .39” - 14” (10 - 360mm)
• Unpunched Length: 1.96” - 10.6” (50 - 270mm)
• Max. Punching Thickness: Up to 0.078” (2mm)
• Punching Operation: Manual
• Punch Dies Available: Oval 5.0 x 4.0mm
• Pitch: .2475” (6mm)

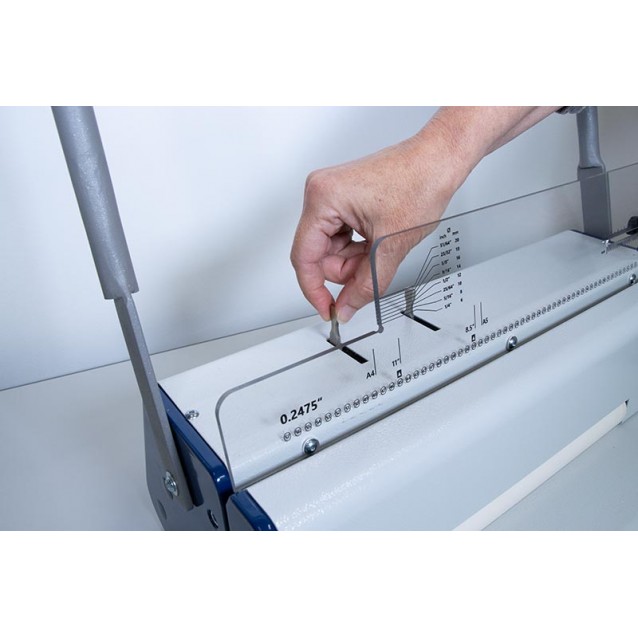

• Disengageable Punch Pins: Yes
• Variable Margin Depth: No
• Binding Thickness: .04” - .62” (1 - 16mm)
• Binding Width: .39” - 14” (10 - 360mm)
• Binding Operation: Electric insert, manual crimp & cut
• Binding Speed: Up to 50 booklets/hr
• Dimensions: 18.5” L x 14” D x 18.5” H (470 x 355 x 470mm)
• Weight: 42 lbs. (19kg)
• Power Supply: 115V, 60Hz, 90W
