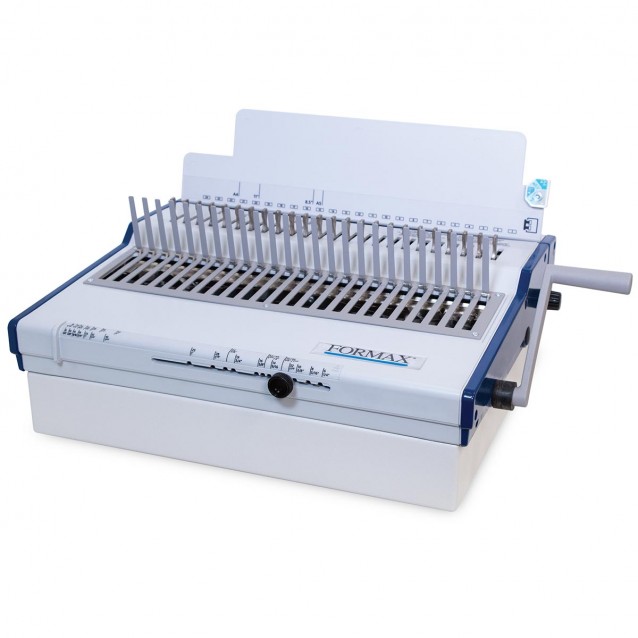

Formax ReadyCombE Electric Comb Punch and Binding Machine

Electric Punch and Manual Comb Opener in One Machine

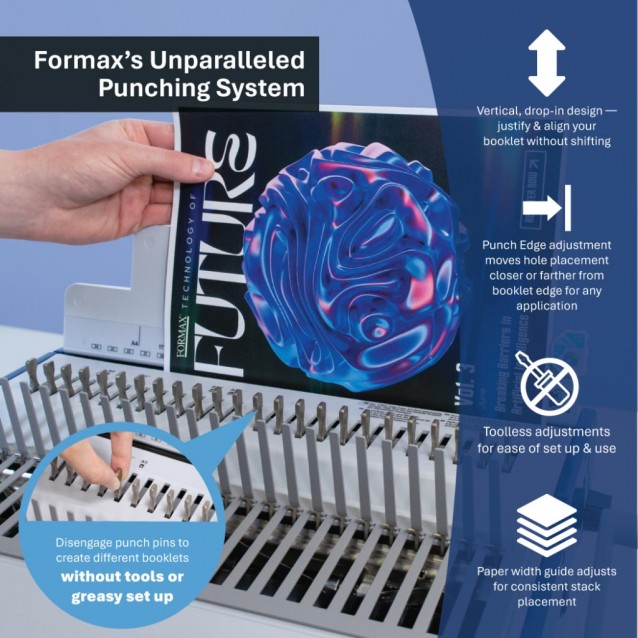

The ReadyCombE Electric Punch and Manual Comb Binding System is designed to produce bound documents quickly and easily. With comb bindings, pages can be added or removed, without damage to the document or the binding itself. Utilizing an electric foot pedal, the precision vertical punching system utilizes gravity to keep every sheet in place, for consistent hole placement even on thicker document sets. Disengageable punch pins offer flexibility for a variety of paper sizes, and are specially hardened for longevity. The lever-activated comb open/close mechanism ensures a secure bind on booklets up to 480 sheets.

Standard Features

• Heavy duty all-metal construction
• Specially hardened punch pins for longevity
• Precision vertical punching
• Disengageable punch pins for flexibility
• Adjustable depth gauge
• Binds up to 480 sheets
• Electric, foot-pedal activated punch
• Closure control adjustment

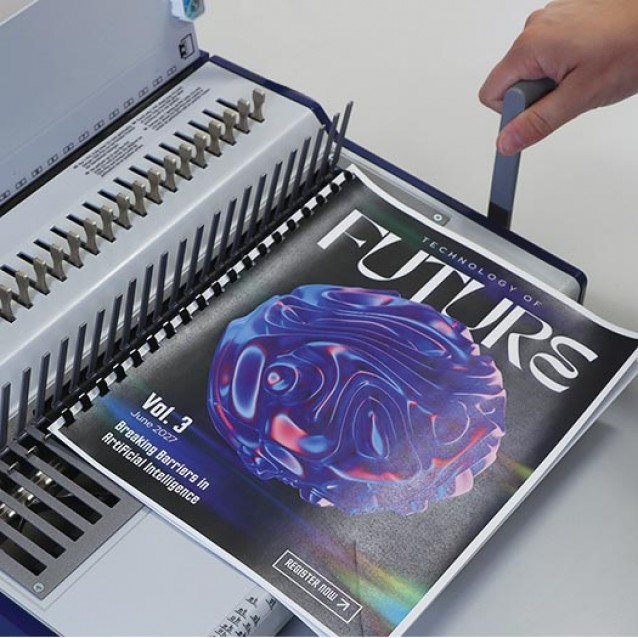

• Manual lever-controlled binding
• Easy-empty sliding waste tray

Specifications

• Punching Speed: Up to 16,000 sheets/hr
• Punching Width: .39” - 13.4” (10 - 340mm)
• Unpunched Length: 1.96” - 19.6” (50 - 500mm)
• Max. Punching Thickness: Up to 0.098” (2.5mm)
• Punching Operation: Electric, foot pedal
• Punch Hole Dimensions: Rectangular 8.0 x 3.0mm
• Pitch: US
• Disengageable Punch Pins: Yes
• Variable Margin Depth: Yes
• Binding Thickness: .04” - 1.88” (1 - 48mm)
• Sheets Per Booklet: Up to 480 sheets
• Comb Size: 1/4” - 2” (6 - 52mm)
• Binding Operation: Manual, lever operated
• Binding Speed: Up to 200 booklets/hr
• Dimensions: 20” W x 14” D x 9 3/4” H (508 x 355 x 247mm)
• Weight: 57 lbs. (26kg)
• Power Supply: 115V, 60Hz, 90W
