Formax ReadyCombM+ Manual Comb Punch and Binding Machine

Punch and Bind with Plastic Comb Binding with Ease

The ReadyCombM+ Manual Punch and Comb Binding System is designed to produce bound documents quickly and easily. With comb bindings, pages can be added or removed, without damage to the document or the binding itself. The ReadyCombM+ features a precision vertical punching system which utilizes gravity to keep every sheet in place, for consistent hole placement even on thicker document sets. Disengageable punch pins offer flexibility for a variety of paper sizes, and are specially hardened for longevity. The lever-activated comb open/close mechanism ensures a secure bind on booklets up to 480 sheets.

Standard Features

• Heavy duty all-metal construction
• Specially hardened punch pins for longevity
• Precision vertical punching

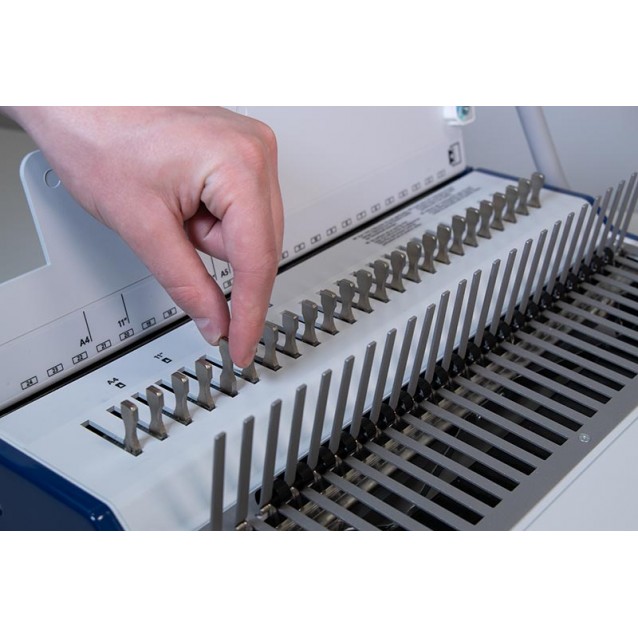

• Disengageable punch pins for flexibility
• Adjustable depth gauge
• Binds up to 480 sheets
• Lever-activated punch

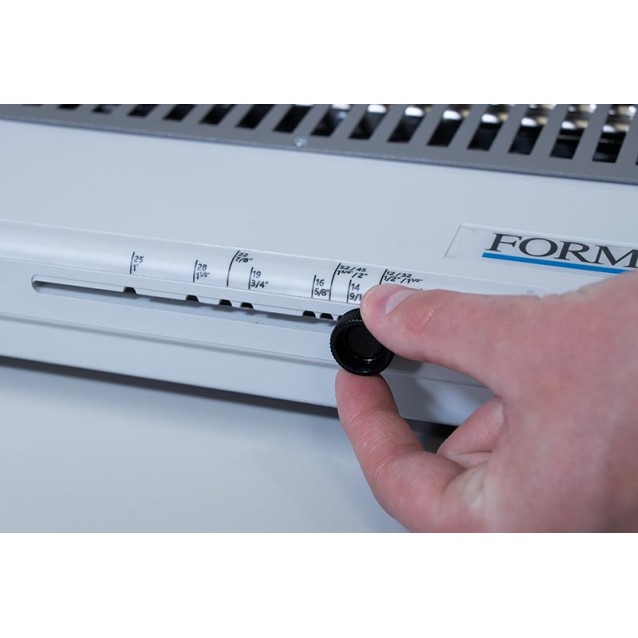

• Closure control adjustment
• Manual lever-controlled binding

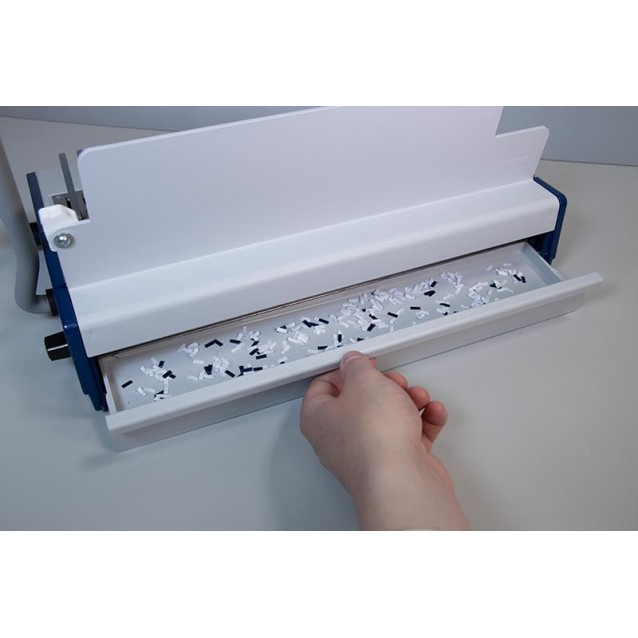

• Easy-empty sliding waste tray

Specifications

• Punching Speed: Up to 12,000 sheets/hr
• Punching Width: .39” - 13.4” (10 - 340mm)
• Unpunched Length: 1.96” - 19.6” (50 - 500mm)
• Max. Punching Thickness: Up to 0.098” (2.5mm)
• Punching Operation: Manual, lever operated
• Punch Hole Dimensions: Rectangular 8.0 x 3.0mm
• Pitch: US
• Disengageable Punch Pins: Yes
• Variable Margin Depth: Yes
• Binding Thickness: .04” - 1.88” (1 - 48mm)
• Sheets Per Booklet: Up to 480 sheets
• Comb Size: 1/4” - 2” (6 - 52mm)
• Binding Operation: Manual, lever operated
• Binding Speed: Up to 200 booklets/hr
• Dimensions: 20” W x 14” D x 12.5” H (508 x 355 x 317mm)
• Weight: 26.5 lbs. (12kg)
