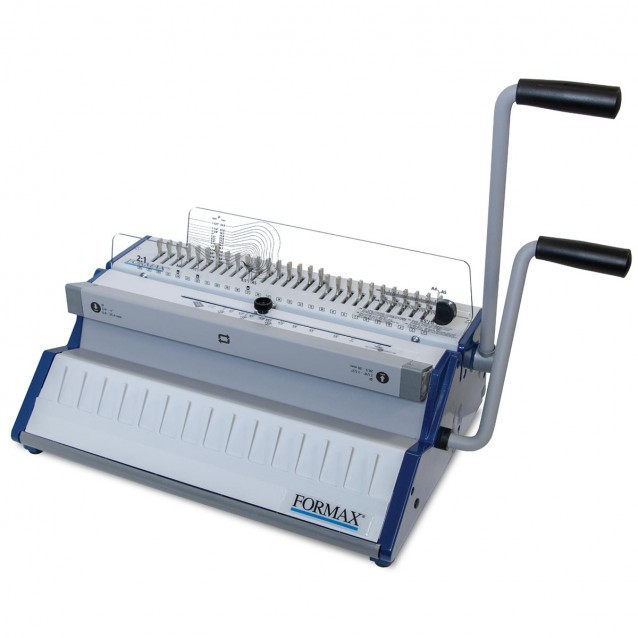

Formax ReadyWire3M Premium Manual 3:1 Pitch Punching and Binding Machine

A Premium Manual Punch and Bind System That Does It All

The ReadyWire3M (3:1 Pitch) Manual Punching & Binding System features smooth manual punching, ideal for offices and organizations with low to moderate binding volumes. With rugged all-metal construction, and quiet operation, they’re built to last, and designed for easy use. The precision vertical punching system utilizes gravity to keep every sheet in place, for consistent hole placement even on larger document sets. Setup is quick and easy with no tools required. It produces professionally bound booklets, with versatility to accommodate a range of wire bindings from 1/4” to 5/8” in diameter, for booklets up to 135 sheets. Wire-bound documents open a full 360 degrees, laying flat for easier reading, writing, scanning, and presentations, and the double-loop wire binding keeps pages secure for a polished appearance through years of use.

Standard Features

• Heavy-duty compact design
• Quick, easy adjustments
• Closure control adjustment
• Precision vertical punching system
• Individually disengageable punch pins
• Smooth, quiet operation
• Depth gauge for stronger bind
• Specially hardened punch pins
• Parallel adjustment for accuracy
• Integrated wire comb holding device
• Easy-empty sliding waste tray

Specifications

• Punching Capacity: Up to 12,000 sheets/hr
• Pitch: 3:1
• Punching/Binding: Manual
• Punching Width: .39” (10mm) - 14” (360mm)
• Max. Punching Thickness: Up to 0.08” (2.2mm)
• Punch Hole Dimensions: Square 4 x 4mm
• Binding Speed: Up to 200 books/hr
• Binding Capacity: Up to 135 sheets
• Wire Diameter: 1/4” - 5/8”
• Disengageable Punch Pins: Yes
• Variable Margin Depth: Yes
• Dimensions: 22” W x 13” D x 17” H (560 x 330 x 430mm)
• Weight: 28.6 lbs. (13kg)
