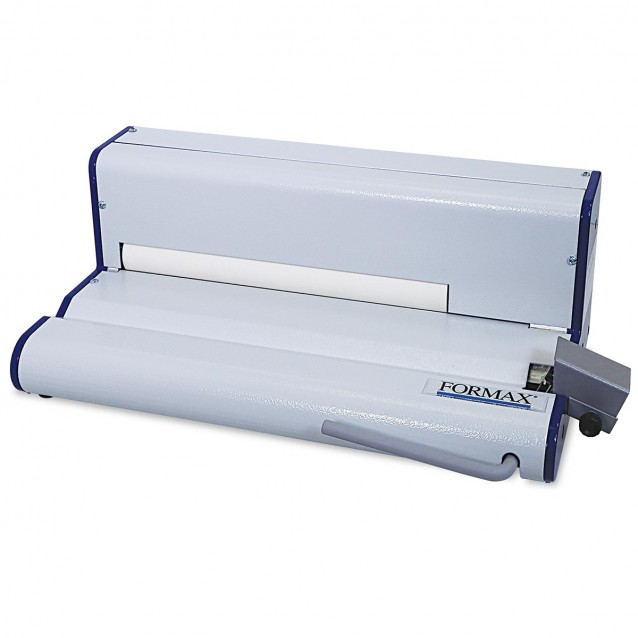

Formax Coil100 Electric Coil Inserter

Inserrting and Crimping in One

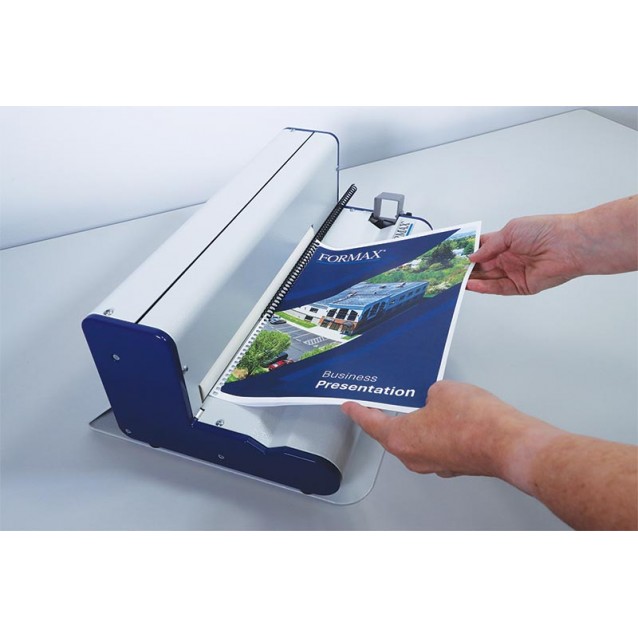

The Coil100 Electric Coil Inserter is the ideal compact solution for binding and finishing booklets. Its modular design allows for use on its own or with the Punch100 for a complete punch and bind system. The easy-to use electric rubber roller threads the coil through the document quickly and effectively. The roller includes an automatic stop feature for operator safety. The Coil100 works with coil elements from 6-20mm independent of pitch. Its convenient integrated coil cut and crimp unit gives the perfect finish to your document and crimps the plastic coil at a 45 degree angle. Plastic coils are incredibly durable and allow documents to be opened completely flat or folded back on themselves for convenient viewing.

Standard Features

• Electric roller coil inserter

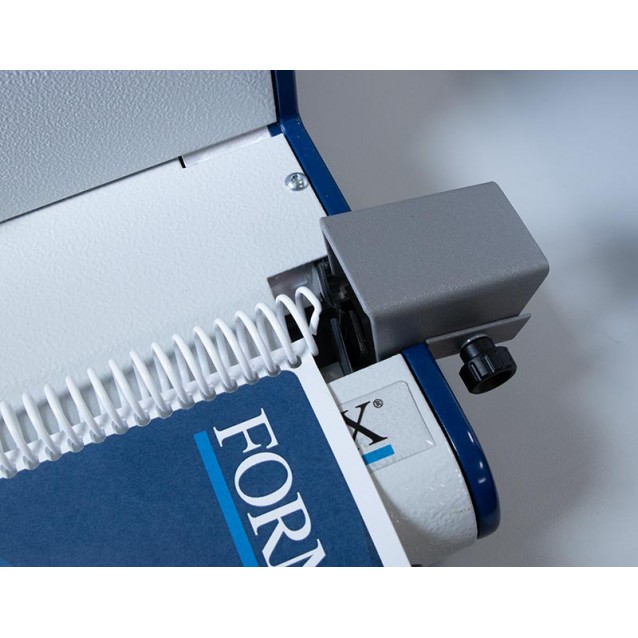

• Integrated coil cutter and crimp
• Can be used as a stand-alone unit

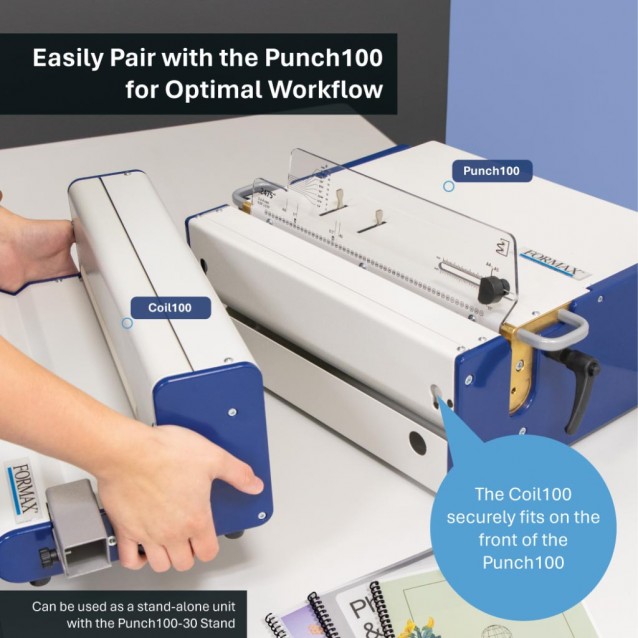

• Modular for use with Punch100
• Rugged all-metal construction
• Quick, quiet operation
• Uses coils from 1/4” to 3/4” in diameter
• Automatic stop for operator safety

Specifications

• Binding Operation: Electric insert, manual crimp & cut
• Pitch: .25” (6mm)
• Binding Thickness: .04 - .62” (1-16mm)
• Min. Binding Width: .39” (10mm)
• Max. Binding Width: 13.4” (340mm)
• Coil Diameter: 1/4 - 3/4” (6-20mm)
• Speed - Books: Up to 80/hr
• Dimensions: 17.7” L x 4” D x 6.3” H (450 x 100 x 160mm)
• Weight: 21 lbs. (9.5kg)
• Power Supply: 115V, 60Hz, 90W
