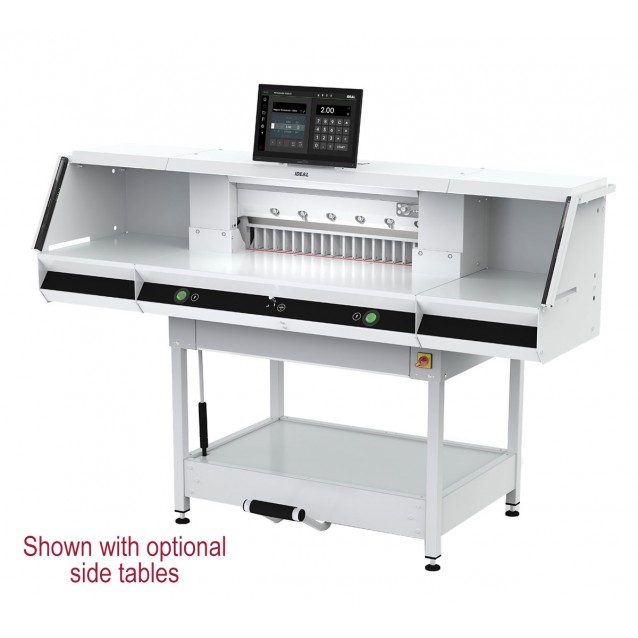

Triumph Speedcut 68 LT Programmable 26.77 inch Hydraulic Paper Cutter with Air Tables

Increase efficiency and productivity by working smarter.

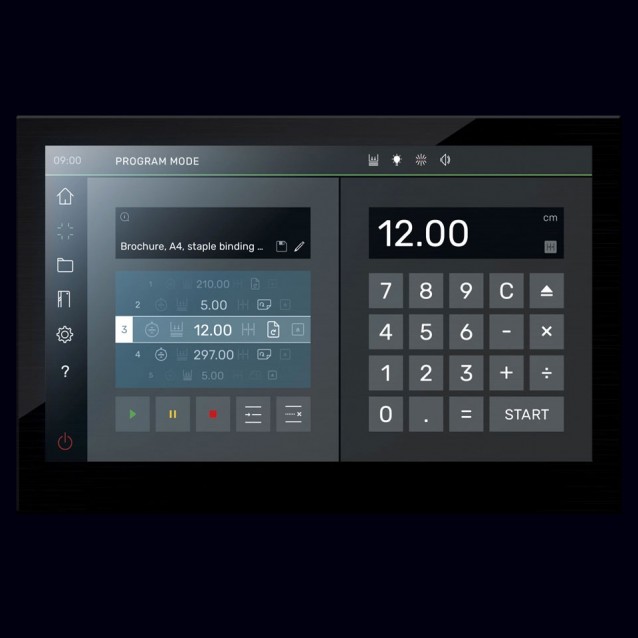

The Triumph Speedcut 68 is the next-generation, programmable hydraulic-powered paper cutter that enhances efficiency and productivity with its advanced features. The 15.6” multi-touch display offers intuitive software with easy touch and swipe operation, providing a clear main screen and intelligently split display. The tilt-adjustable display can be customized to suit body height and lighting conditions. The LT model differs from the standard 68 with the addition of front and rear air tables for easy movement of paper stacks while processing cuts.

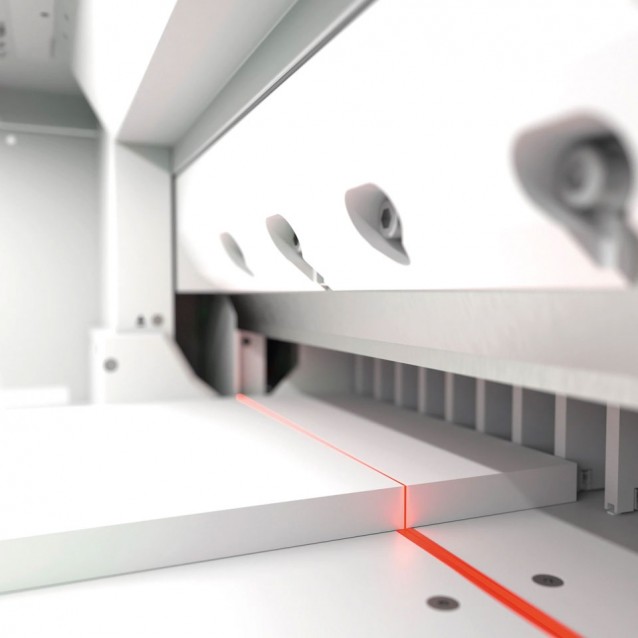

Precision is ensured with the manual fine adjustment of the backgauge, operated via an ergonomic control element. Safe, two-hand operation is achieved with EASY-TOUCH cut-activating buttons and integrated optical signals. The mechanical foot clamp features ergonomic, patented pre-clamping, and cutting line indication functionality, offering ultimate convenience and precision.

Features:

• Front and rear air tables for easy paper movement
• Electro-mechanical precision blade drive and hydraulic clamp drive (patent pending)
• Programmable and manual backgauge positioning with optimum operator ergonomics and logic
• Adjustable back gauge with narrow separations and plastic gliders
• The precision back gauge spindle guarantees exact cuts. ­
• Clamp bar with infinitely programmable adjustment
• Electronically controlled false clamp plate, ideal for delicate work
• Infinitely dimmable front table illumination LEDs
• Ergonomic control element for manual adjustment of the backgauge position
• Table height ergonomically adjustable from 37.4" to 39.3"
• Solid steel blade carrier with blade guide system (patent pending)
• Accessible blade depth adjustment on the front of the machine (patent-pending)
• Integrated tool storage
• 1-year limited warranty, excluding wearables

Safety Features:

• Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation
• IR Light Beam Safety Curtain covers the work area to ensure the highest level of operator safety
• Safety cover on rear table
• Main switch and safety code lock
• True two-hand blade activation via EASY-TOUCH buttons
• Easy blade and cutting stick change
• Knife changing device with covered cutting edge
• Pin controlled, electronic code lock to secure the machine
• Knife depth adjustment from the outside

Speedcut Software:

• Elevating cutting program automation to new heights.
• Speedcut enhances production efficiency with cutting-edge mark recognition technology, removing the need for manual programming.
• Automatically generates cutting programs for the TRIUMPH Speedcut 68, streamlining your workflow.
• Imposition, transforms cutting productivity with seamless integration
• Features advanced cut mark recognition for precision and speed.
• Operates independently of templates or specific file formats.
• Achieve expert-level cutting results effortlessly, saving you both time and money.

Specifications:

• Cutting Width: 26.77"
• Cutting Height: 3.15" / 3" with false clamp
• Length Behind Blade: 28″
• Narrow Cut: <0.6" / 2.3"
• Table Depth: 26.77"
• Table Height: Adjustable from 37.4" - 39.3"
• Dimensions (D x W x H): 52.40″ x 43.26″ x 59.96″
• Dimensions w/ Side Tables (D x W x H): 52.40″ x 74.26″ x 59.96″
• Shipping Weight: 815 lbs
• Shipping Weight w/ Side Tables: 844 lbs
• Electrical Requirements: 120V, 60 Hz, 20A dedicated line required
