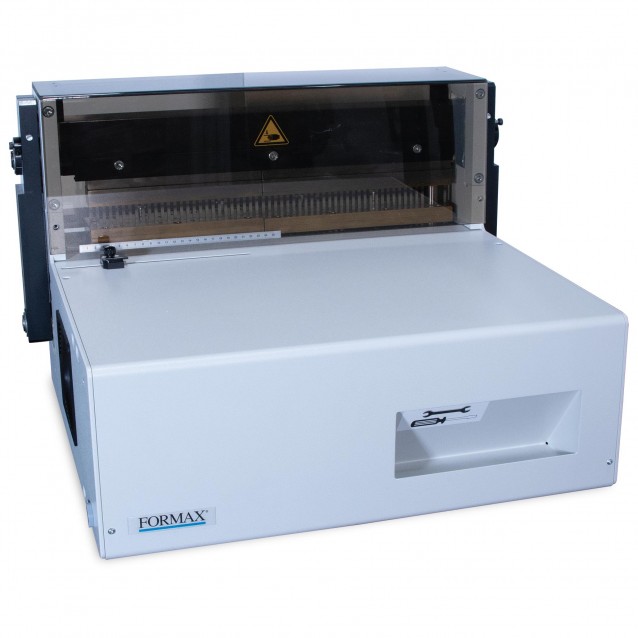

Formax Punch200 Heavy-Duty Electric Punch

Production Quality Heavy-Duty Performance

The Punch200 Electric Punch provides heavy-duty punching for production environments. It accommodates a wide of variety of interchangeable dies for ReadyWire, plastic comb, and spiral coil, which can be changed in just minutes. Disengageable punch pins allow for flexibility when working with various paper sizes. Simply choose between foot pedal or micro switch activation, and punch sheet stacks up to 4mm thick. The plexiglas cover helps to ensure operator safety. It has the capacity to handle dies which have been resharpened, utilizing its eccentric shaft adjustment. Pair the Punch200 with the Wire200 or Wire300 for efficient, production level punching and binding projects.

The Formax Punch200 does not include a punch die. If you want to add one to your order, FIND THEM HERE.

Standard Features

• Heavy-duty all-metal construction
• Dies available for wire, comb, and coil
• Quick, easy size adjustment

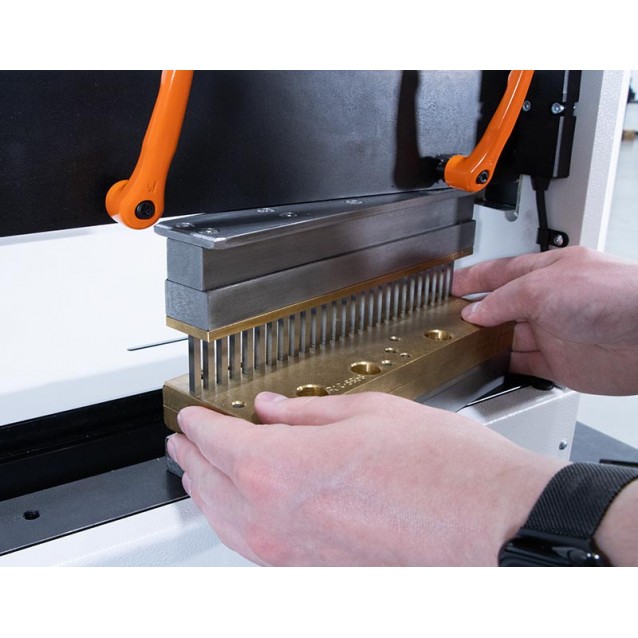

• Fast die changes, under 3 minutes

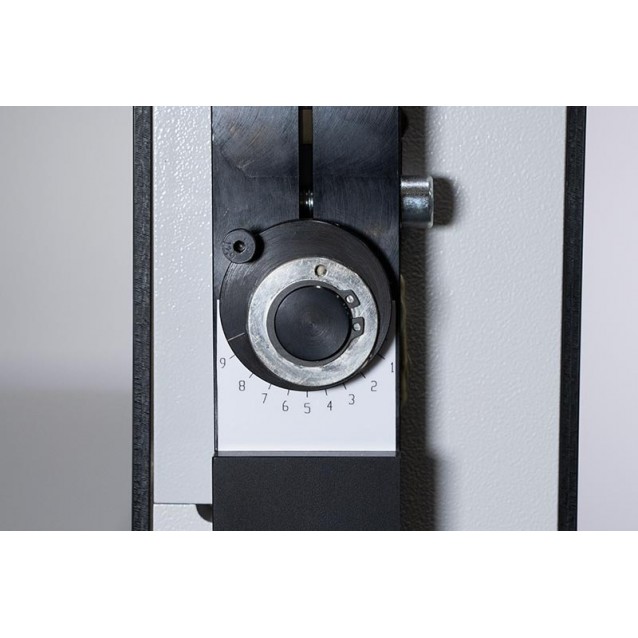

• Eccentric punching shafts
• Automatic punch sensor
• Punches a variety of mixed paper stock
• Horizontal paper feeding

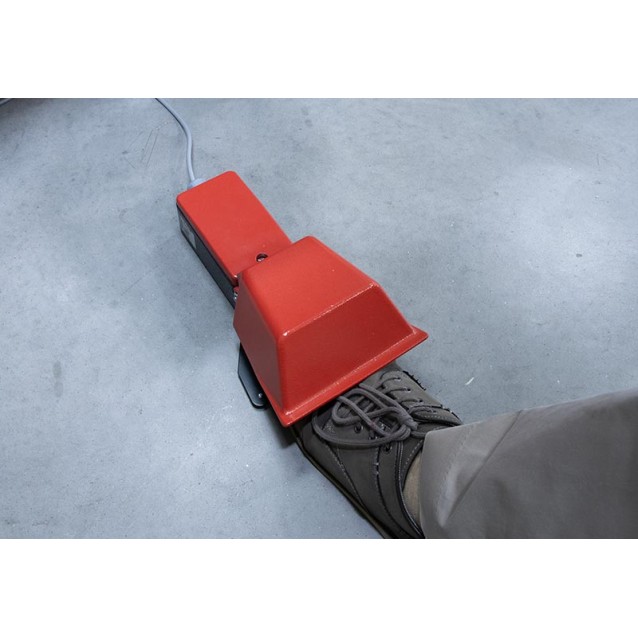

• Foot pedal or sensor activation
• Plexiglas safety cover

Specifications

• Mechanical Cycles: Up to 3,000/hr
• Min. Punching Width: 2.4” (60mm) with foot pedal / 4.1” (105mm) with micro switch
• Max. Punching Width: Up to 19.7” (500mm)
• Min. Unpunched Length: 2.75” (70mm) with foot pedal / 4.3” (110mm) with micro switch
• Max. Unpunched Length: Up to 31.5” (800mm)
• Max. Punching Thickness: Up to .15” (4mm)

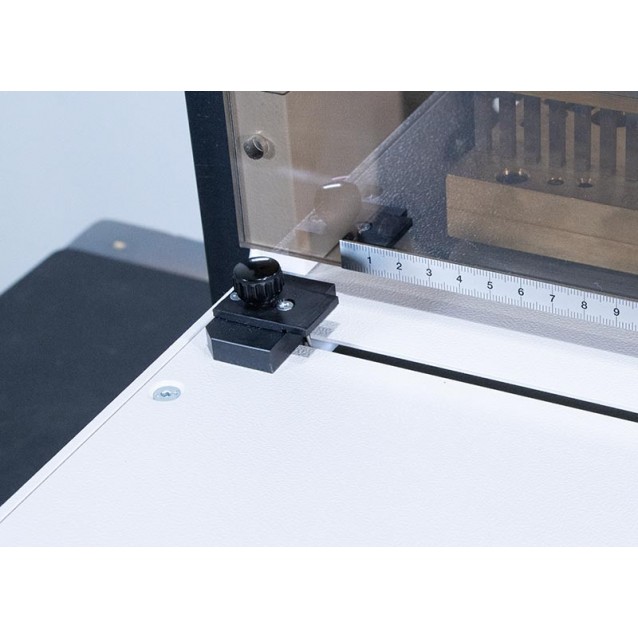

• Punching Operation: Micro switch sensor or foot pedal
• Punch Dies Available: 3:1, 2:1 ReadyWire, plastic comb, spiral coil
• Disengageable Punch Pins: Yes
• Variable Margin Depth: No
• Dimensions: 26.4” L x 17.7” D x 15.7” H (670 x 450 x 400mm)
• Weight: 247 lbs. (112kg)
• Power Supply: 208V, 3 Phase, 20A, 50/60Hz
